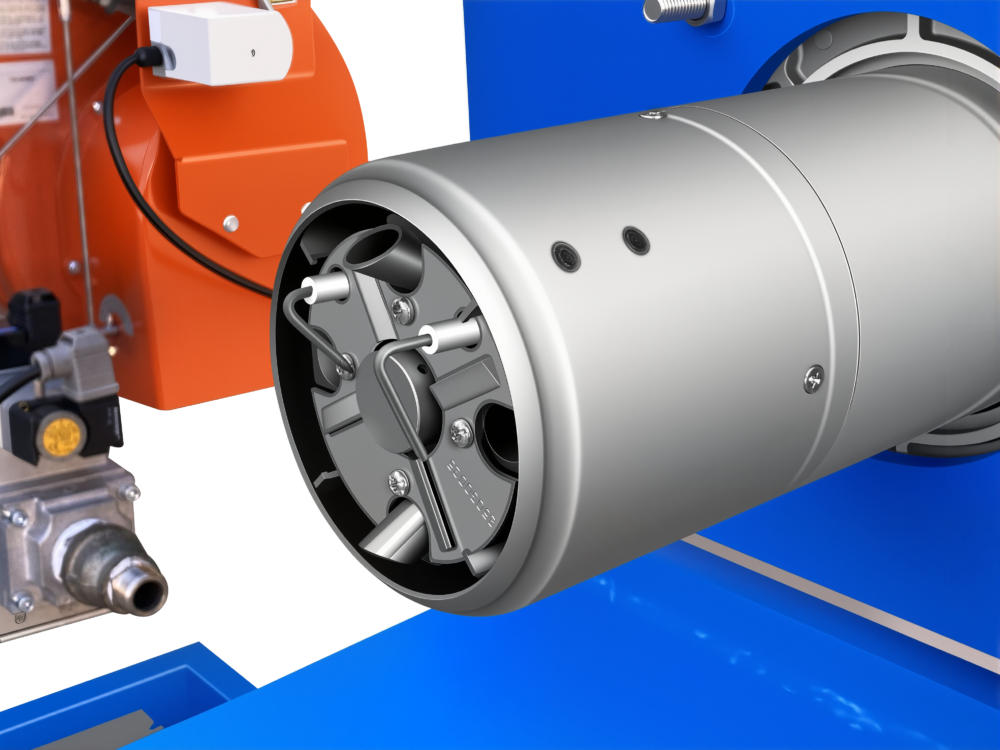

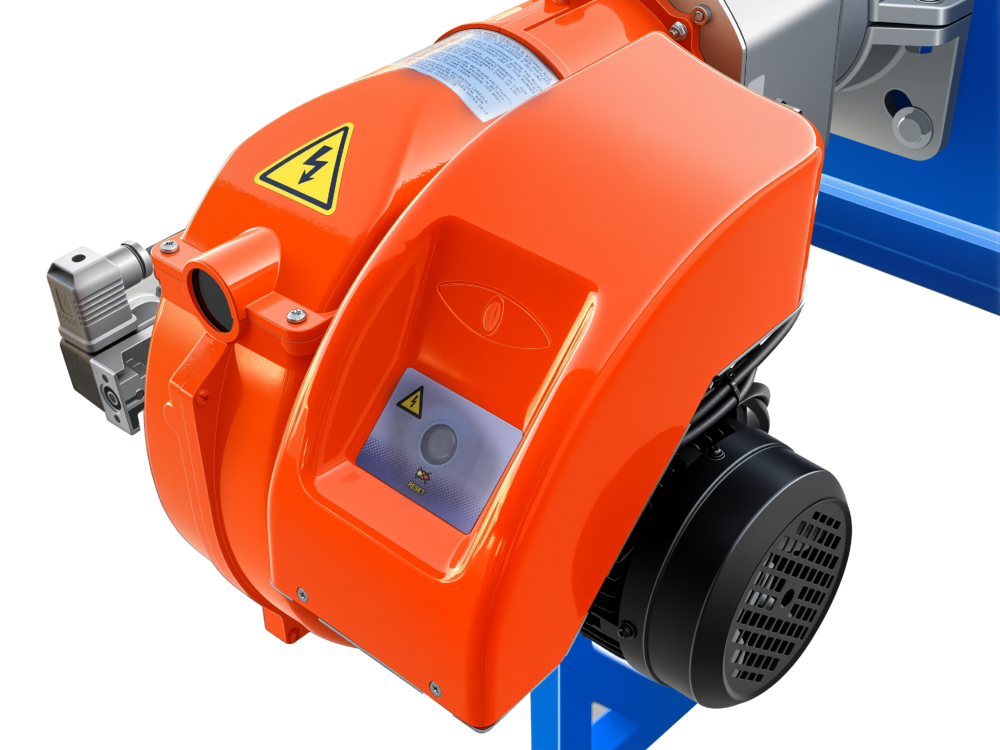

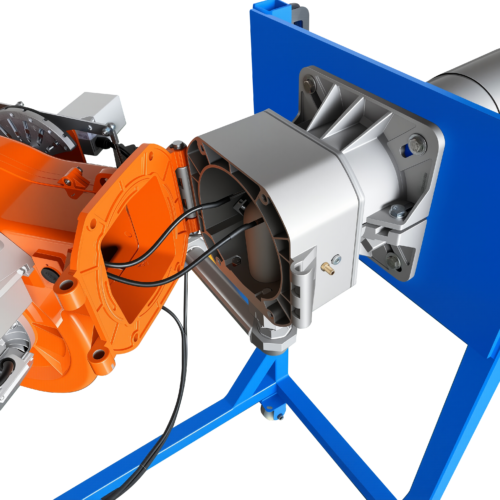

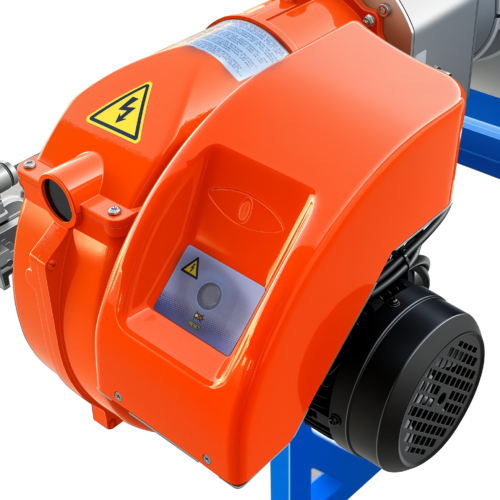

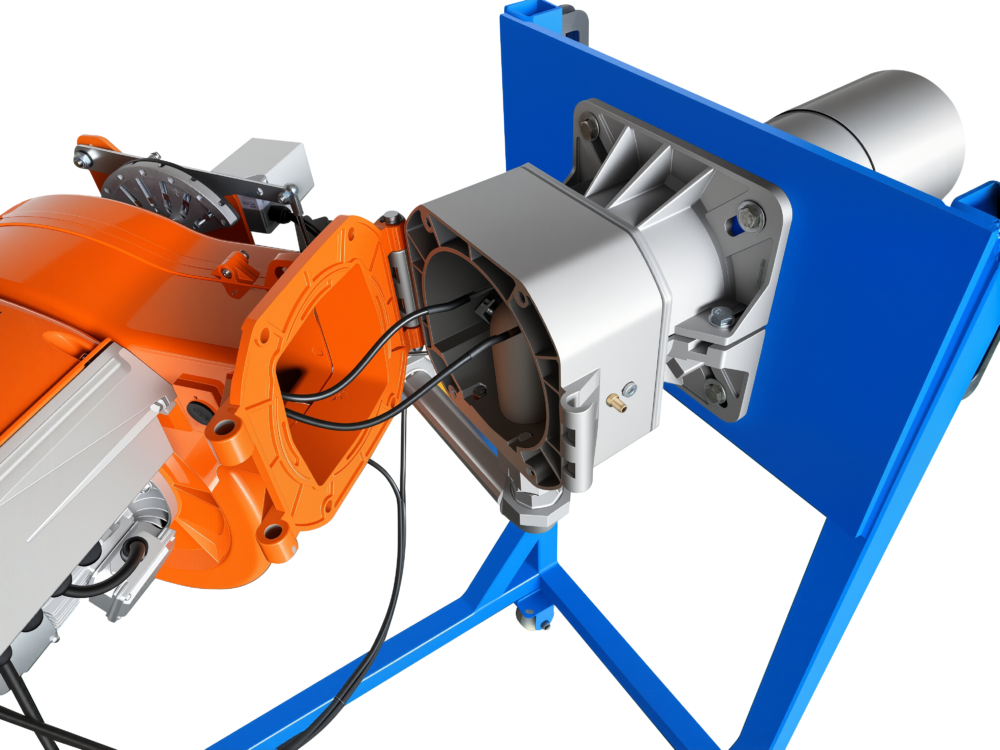

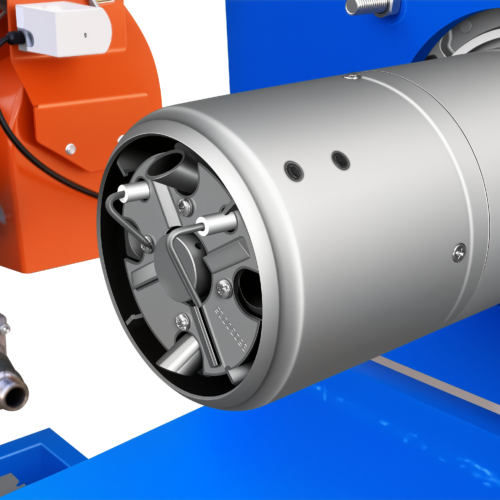

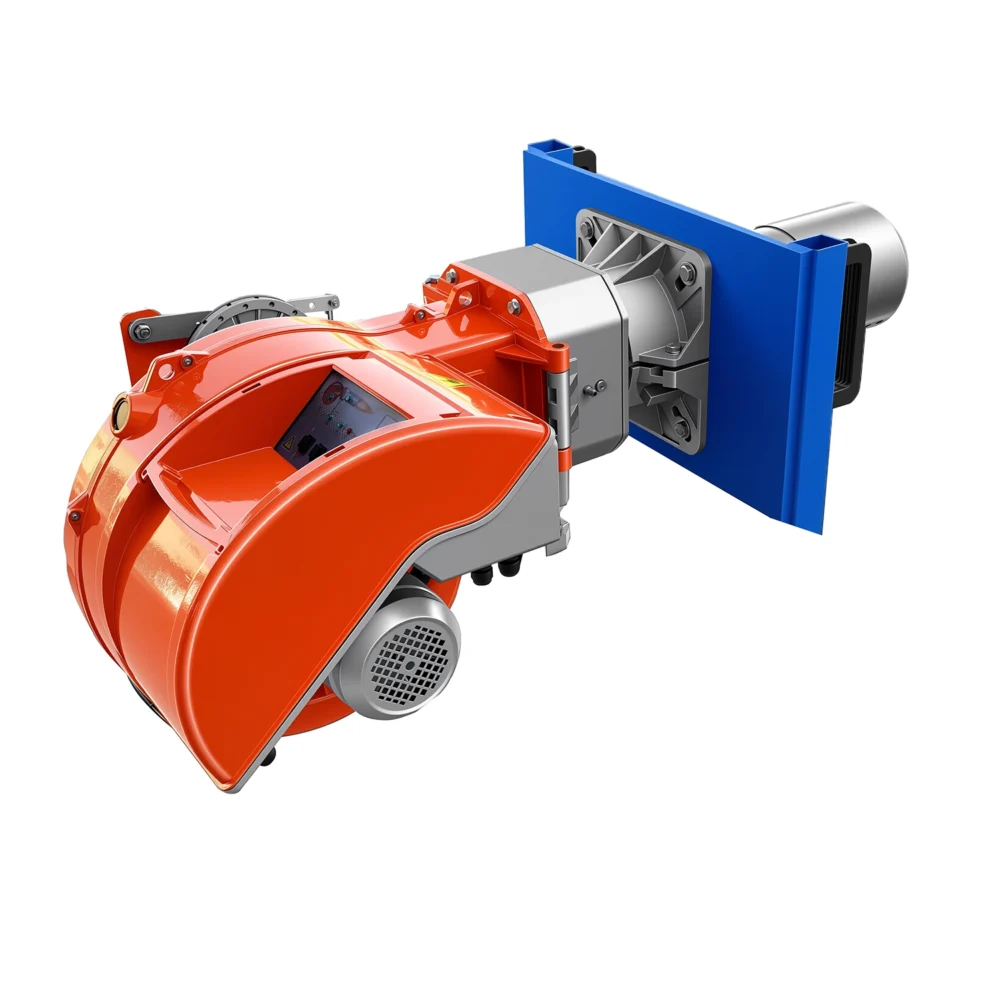

BST-17 New Type Gas Burner
$550.00
- Fuel: Natural Gas / LPG
- Match boiler size(T/H): 0.2–0.3
- Rated output power: 180KW
- Range of heat output(10000kcal/h):3–15
- Gas consumption (Nm³/H): 18–30 (Natural Gas)
- Ambient temperature:-15-60°C
- Main power supply:220V / 50HZ ，Single-phase（1P+N)
Product Description
The BST-17 gas burner is designed for efficient and stable combustion using natural gas or LPG.
It features precise air-fuel ratio control and reliable ignition system, ensuring clean combustion, energy saving, and long-term stable operation.
Technical Parameters
- Fuel: Natural Gas / LPG
- Capacity: BST-17
- Match boiler size (T/H): 0.2–0.3
- Rated output power: 180KW
- Range of heat output (10000 kcal/h): 3–15
- Gas consumption (Nm³/H): 18–30 (Natural Gas)
- Range of flame jet length adjustment: 0.3m–1.2m (max)
- Atomization method: Gas direct combustion (no atomization required)
- Fire segment: 1-stage (optional 2-stage)

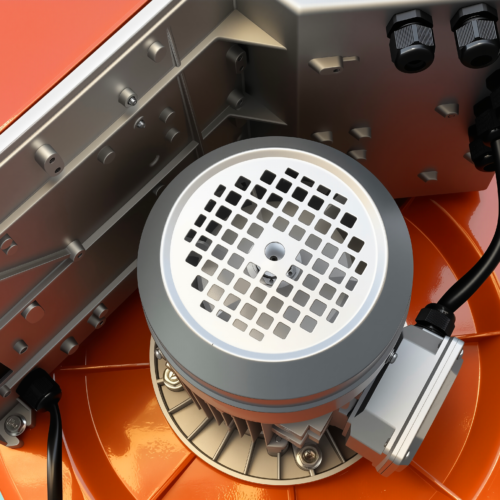

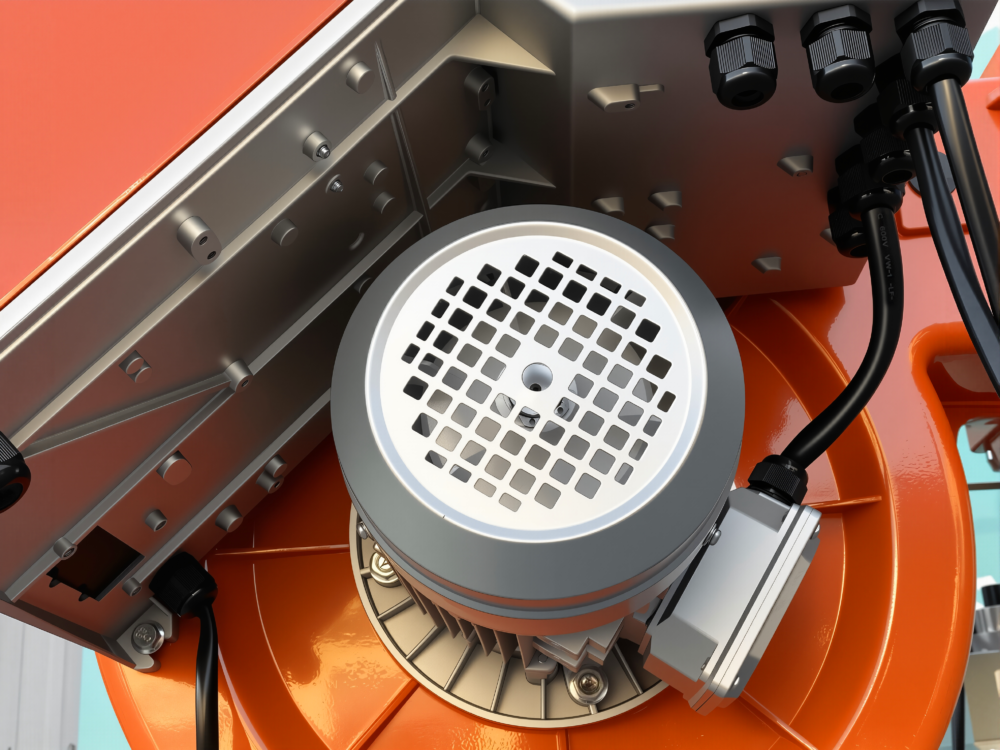

- Motor power (KW): 0.18
- Ignition method: Automatic electronic ignition
- Flame monitoring: Ionization flame detection
- Controller: Integrated burner control system

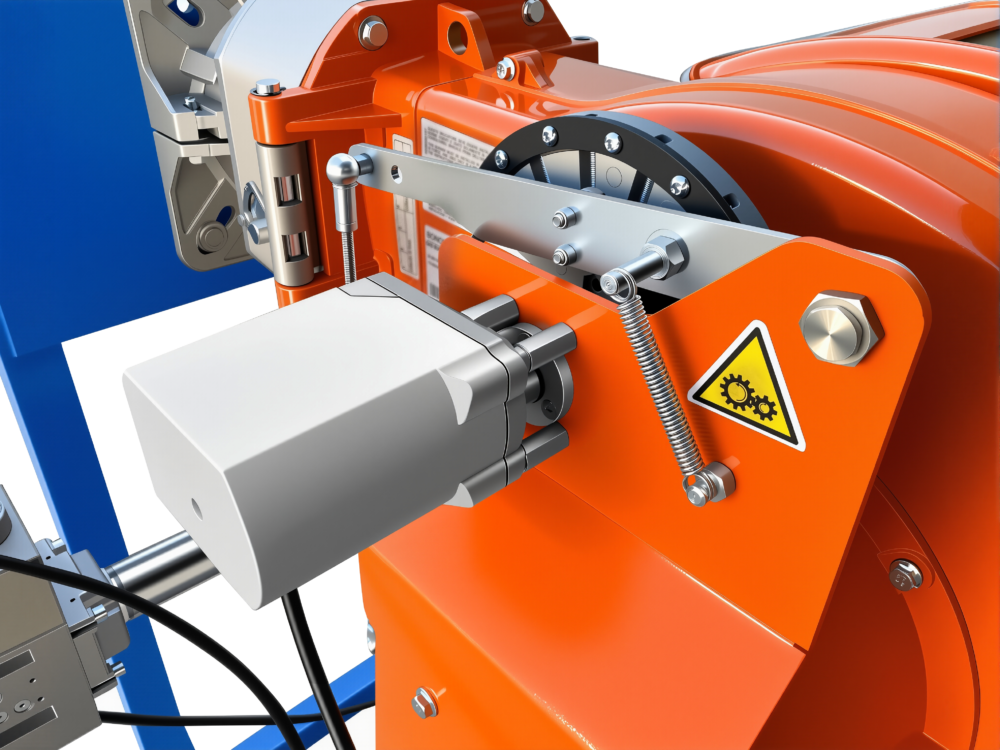

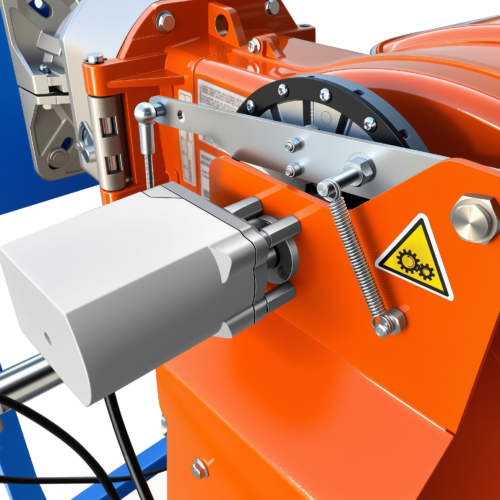

- Air control: Damper with motorized adjustment
- Installation Flame Type: Standard flange mounting
- Ambient temperature: -15°C to 60°C
- Main power supply: 220V / 50HZ ，Single-phase（1P+N)
Application
- Industrial Boiler
- Drying System
- Baking Oven
- Furnace
- Greenhouse Heating
Advantages
- Clean combustion, no smoke and low emission
- High thermal efficiency and energy saving
- Stable operation with automatic control
- Easy installation and maintenance
- Low noise operation
- Support customization (gas type, voltage, control system)
Packaging
All burners are carefully packed using export-standard cartons or wooden cases to ensure maximum protection during transportation.
Each package is designed according to the product size and weight, with internal reinforcement to prevent damage during handling and long-distance shipping.
Packing size and gross weight can be provided upon request.
Transportation
We support multiple transportation methods, including sea freight, air freight, and express delivery, depending on the destination and urgency.
Shipping cost and delivery time will be confirmed after the product model, quantity, and destination are finalized.
Customers can choose their own forwarder or use our recommended logistics solutions.
